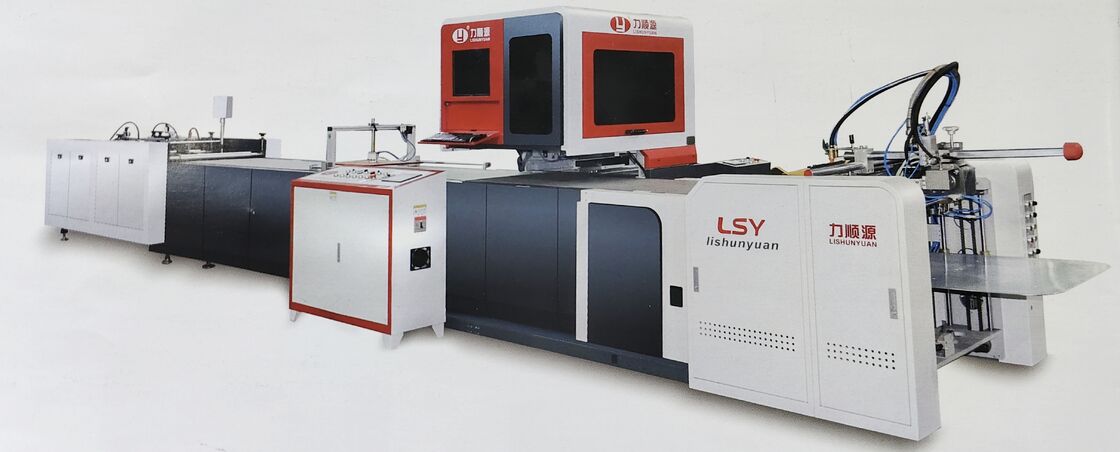

LY-4510C-PK Automatic Hardcover Making Machine/ Case Making Machine

Facility profile:

• Independent control by different servo motor for feeding, avert double sheet and incline.
• Within 2 sets of high precision cameras and YAMAHA robot arm, Positioning accuracy of ± 0.05mm. YAMAHA robot arm are adopted to accurate position all kinds of product , such like hardcover maker, lining,etc.

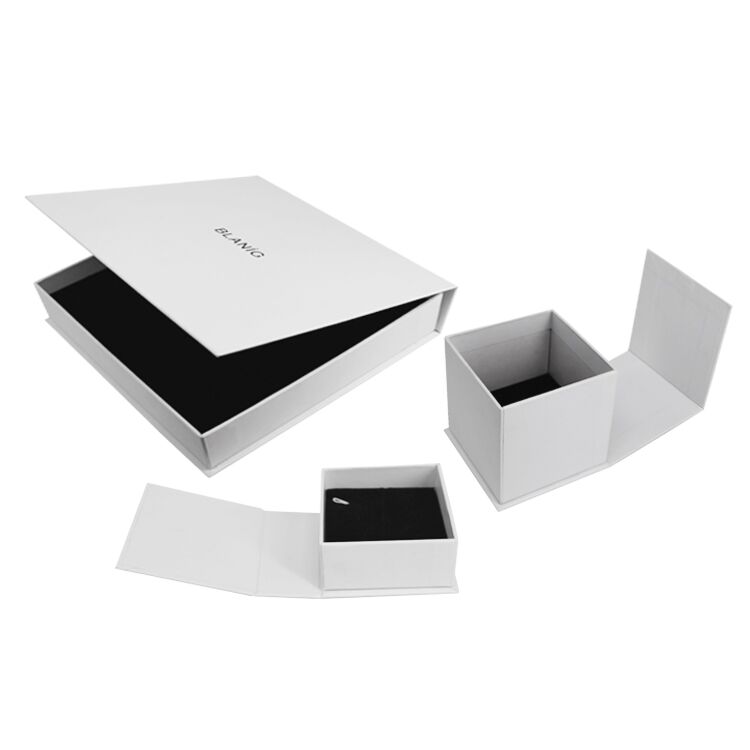

• Able to production Rigid Box and Hard Cover(Case Maker) and lining.
• Able to production box and case at the same time, Capacity up to15-30 PCS/Min.
• Easy to setup enhance productivity and increase enterprise profit.

Features:

1. Structure of printer’s cam gear. Catching up one piece of paper first and blowing it into the roller, reducing the defective percentage. 2. (1) Adopted a circulatory system that is suitable for hot & white glue to avoid splashing glue and reduce your clean time, making the machine working stabilized; (2) Adopted a heating system that heating at regular time and constant temperature to avoid waiting time; (3) With blender(beater) inside, which can stir the glue evenly to ensure the same viscosity of the glue on paper and reduce defective percentage caused by inferior glue; 3. The feeder, roller, conveyor belt have their own servo motor and work as a whole with a strong coordination and stability, which can reduce debugging time, enhance productivity and increase enterprise profit. 4. The gluing roller is made of medium carbon steel with its surface covered by 304 stainless steel, making your machine much more durable and very easy to be cleaned, which can help you reduce the maintenance cost.
Positioning
1. Japan Yamaha Robot Arm for spotting the grey board box 2.Two cameras with Lens in 10million Pixel tracing system 3. Double Camera with XY Spool for positioning. 4.Positioning accuracy in 0.01mm.
Pressing
1. Multiple robot suck arm able to pick from max size :L840MM W:430MM 2. Storage area with two system for feeding board . bottom push and suck push to avoid scratch.
Folding
1. First length side using belt folding. 2. Utilizing multiple pressure rollers and a double-layer belt for guidance and compression. 3. Ensuring materials are properly aligned and fed without edge gaps or material spillage! Resulting in a denser, more compact finished product.
1. Width side using servo control ,easy to setup . 2. Timing belt drive ensures synchronized positioning . 3. Corner pressing rollers pre-compress edges prior to folding the short edges.

Technical Parameters:

Process flow:

For cover and lining:



Founded in 2001 and situated in Dongguan City, Guangdong Province, LiShunyuan boasts a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has built a comprehensive sales and after-sales service network across China, with its products exported to over 40 countries and regions spanning Europe, America, Southeast Asia, South America, the Middle East and Africa.

Innovation stands as LiShunyuan’s core competitive strength. The company holds independent intellectual property rights for its product portfolio, which covers the rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in the production of premium gift boxes, mobile phone packaging boxes, cosmetic boxes, wine and liquor boxes, as well as other high-end boutique packaging boxes.

Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the development strategy of "Strive for Perfection, Forge New Paths", LiShunyuan is committed to R&D and development of high-performance, high-efficiency new products for the packaging industry, and is at the forefront of driving the rapid advancement of intelligent automation within the sector.

We offer industry-competitive machinery, a professional quality control team, and comprehensive customer service. At LiShunyuan, we place great emphasis on providing full-spectrum support to our clients – spanning from pre-sales consultation and custom machinery development tailored to specific requirements, to the manufacturing of box-making equipment and ongoing, thorough after-sales support. We are committed to delivering maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging boxes, all fully aligned with the unique needs of each individual client.

• 1 Hour Service
  We will reply to your service request call within one hour with solution suggestion.
• 12 Hours Service
  The GM's office will handle customer's complaints directly and reply within 12 hours with solution.
• Reach Within 24 Working Hours
  The maintenance team will be in place within 24 working hours for customers located within 500km of the service point range.
• 1 Time/Month
  By re-visiting the customers on a monthly basis, customers can rest assured and worriless.
• Pre-sale Service
  Before delivery, customer can arrange personnel to train in our company. We have teachers of professional electronic engineer and mechanical engineer and we will arrange technical engineers live training of changing different products in the machine at the same time. Inspect the machine comprehensively when training.
• Sale Services
  When the machine reached your company, we will arrange technical engineers to install and debug, and provide a week of training service for free of charge, then carry out the training services for the production in big batch.
• After-sales Service
  We will establish completed customer files, record the customer usage at any time, and re-visit to find out usage status and performance of equipment regularly. And also provide professional services of software and hardware updates, functional improvement. We have senior and strong after-sales service team and complete spare parts warehouse to satisfy customers quickly and timely.
